Welded Type
Riveted Tpye

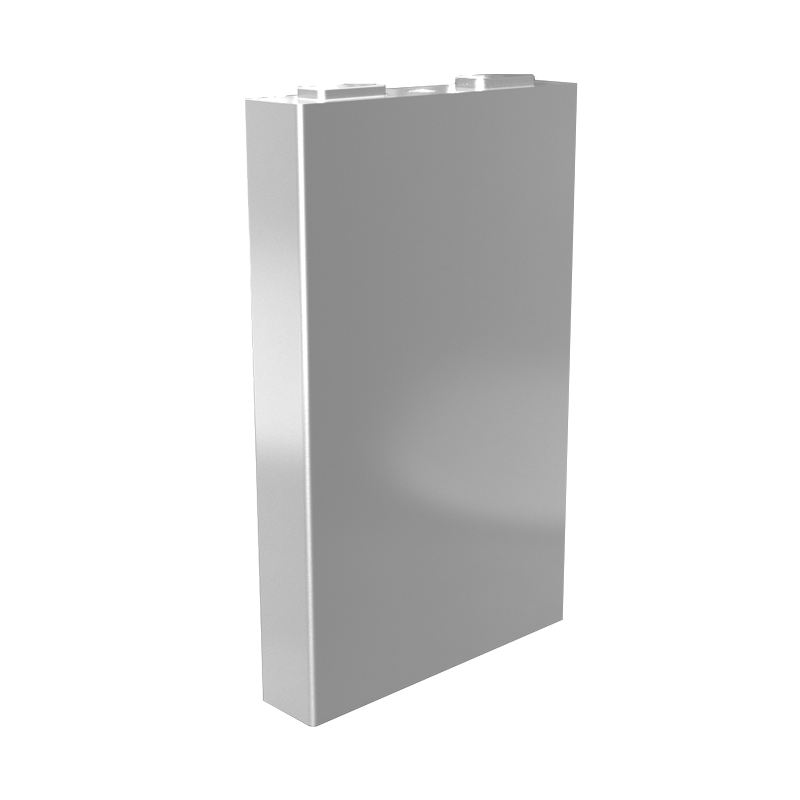

Lithium Iron Phosphate Battery (welded type)
Five Advantages Enable New Energy Life
High Safety: More than ten years of high safety product design verification, passed rigorous needling, extrusion, drop and other product safety tests,The cell and battery pack have good heat dissipation effect and high space utilization.
Long Cycle Life: Cycle times 3000+
High Specific Energy: Cell volume energy density 360Wh/L
Temperature Endurance: -20℃-60℃ discharge over 90%, excellently perform in extem environment
Economical and Environment-Friendly: Adopt "double water system" technology, no NMP pollution
Product parameters
| model: | IFP30/135/226-90EA | IFP30/135/226-100EA |
| cathode material | Lithium iron phosphate | Lithium iron phosphate |
| Ratedvoltage（V） | 3.2 | 3.2 |
| Rated capacity（Ah） | 90 | 100 |
| Electric quantity（KWh） | 0.288 | 0.32 |
| Maximum continuous charging current（A） | 90 | 100 |
| Maximum continuous discharge current （A） |
90 | 100 |
| Charging operating temperature（℃） | 0~55 | 0~55 |
| Discharge operating temperature（℃） | -20~55 | -20~55 |
| size(T*W*H,mm) | 30*135*226 | 30*135*226 |
| weight（Kg） | 1.85±0.05 | 1.87±0.05 |
Lithium Iron Phosphate Battery (riveted tpye)
Five Advantages Enable New Energy Life
High Safety: More than ten years of high safety product design verification, passed rigorous needling, extrusion, drop and other product safety tests,The cell and battery pack have good heat dissipation effect and high space utilization.
Long Cycle Life: Cycle times 3000+
High Specific Energy: Cell volume energy density 360Wh/L
Temperature Endurance: -20℃-60℃ discharge over 90%, excellently perform in extem environment
Economical and Environment-Friendly: Adopt "double water system" technology, no NMP pollution
Product parameters
| model: | IFP30/135/226-90EA | IFP30/135/226-100EA |
| cathode material | Lithium iron phosphate | Lithium iron phosphate |
| Ratedvoltage（V） | 3.2 | 3.2 |
| Rated capacity量（Ah） | 90 | 100 |
| Electric quantity（KWh） | 0.288 | 0.32 |
| Maximum continuous charging current（A） | 90 | 100 |
| Maximum continuous discharge current （A） |
90 | 100 |
| Charging operating temperature（℃） | 0~55 | 0~55 |
| Discharge operating temperature（℃） | -20~55 | -20~55 |
| size(T*W*H,mm) | 30*135*226 | 30*135*226 |
| weight（Kg） | 1.85±0.05 | 1.87±0.05 |
